PracticalPleat Filters offer a simple solution for retrofitting standard 1" filters with an extended media, high efficiency option. Lasting up to 6 months , the Practical Pleat filter has a patented gasket that conforms to imperfections in the filter track, eliminating air bypass and preserving the integrity of the MERV11 Rating. This unique gasket fits into the one-inch filter slot with the excessive depth protruding in the duct system or return plenum.

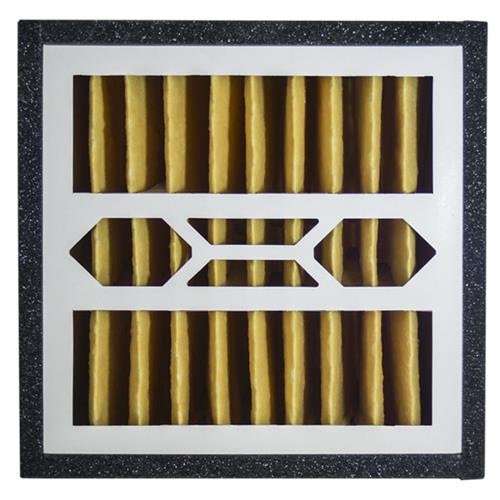

12" x 12" x 5" Practical Pleat , # PP11-12125
Specifications
-
FREE REGIONAL SHIPPING*
-

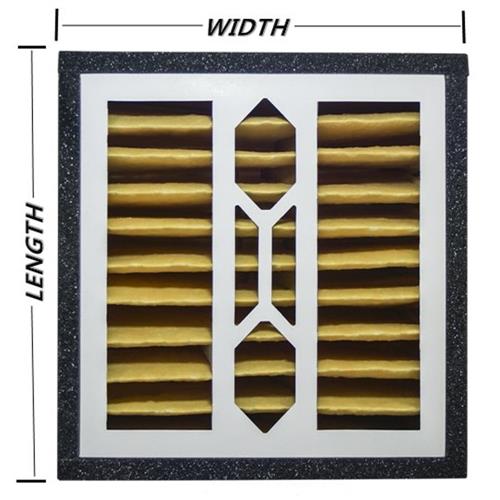

Filter Size: 12 x 12 x 5 inches
-
Filters specifications approximately ± 1/8"
-

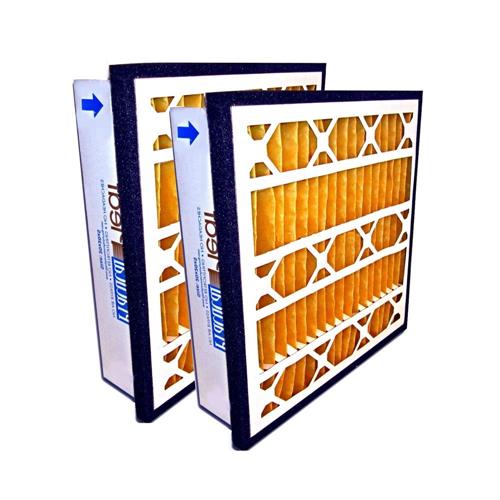

Sold in Case of (2) Filters
The Many Benefits of the Practical Pleat Filter:
-
MERV11 Extended Surface Pleated Filter
-

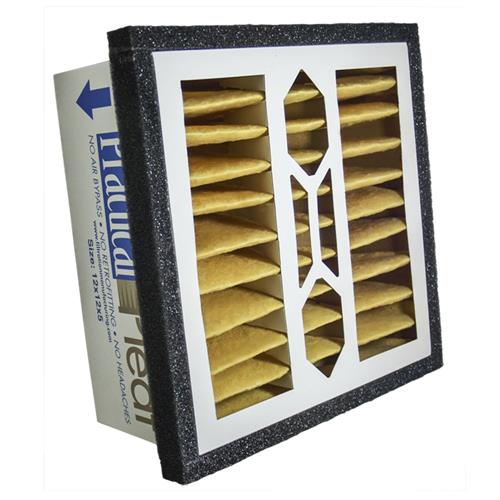

Self-sealing flexible gasket eliminates air by-pass.
-
Increased surface area provides extended lifetime.
-
Low-pressure drop reduces energy consumption.
-

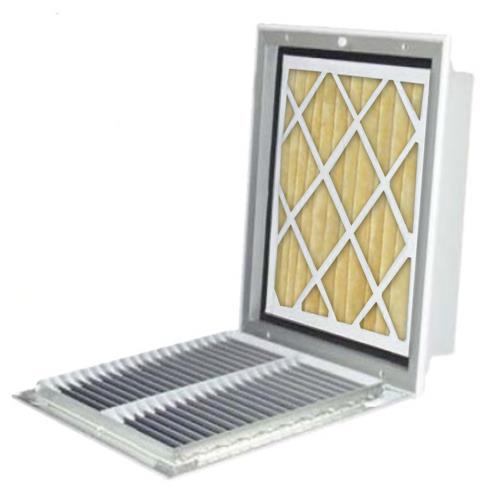

Five-inch deep pleat filter that fits into most 1 inch return air grilles.
-
No retrofitting or installing expensive "in duct housings" required.
-
Filters last up to 6 times as long as one-inch filters.
-
MERV11 efficiency , captures and removes fine particles to promote better indoor air quality (IAQ).
-
The Practical Pleat's surface area is 433% greater than a comparable one-inch filter.
-
Extended surface pleating reduces resistance to airflow by 41%.
Supersedes / Replaces: 12x12x1 12 x 12 x 1 11-1/2 x 11-1/2 x 1 11-1/2x11-1/2x1 11.5x11.5x1 11.5 x 11.5 x 1 PP0812122 PP08-12122 PP1112125 PP11-12125 and similar pleated filters
*Freight May Be Additional Depending on Your Location , Ships FREE East of the Mississippi
NOTE: These Filters are BTO / Built-To-Order , Leadtimes may be impacted due to delays in Manufacturing and/or Supply Chain disruptions. Please Contact Us if you have any concerns or to confirm availability prior to ordering.
Additional Filters & IAQ Products Available , Contact Us for More Information
Click on any of the links below to download associated documentation.
»
Test Data - MERV11 PracticalPleat.pdf
