PracticalPleat Filters offer a simple solution for retrofitting standard 1" filters with an extended media, high efficiency option. Lasting up to 6 months , the Practical Pleat filter has a patented gasket that conforms to imperfections in the filter track, eliminating air bypass and preserving the integrity of the MERV14 Rating. This unique gasket fits into the one-inch filter slot with the excessive depth protruding in the duct system or return plenum.

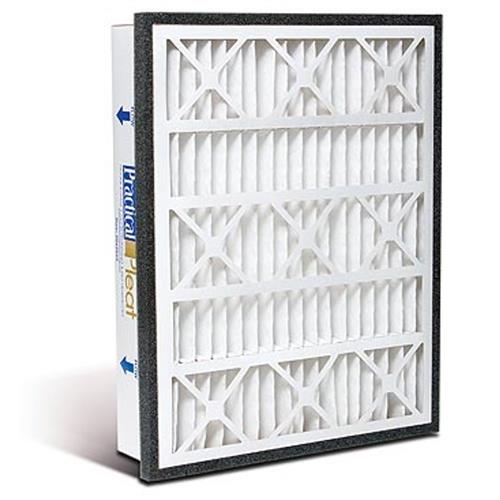

14" x 30" x 5" Practical Pleat , # PP14-14305
Specifications
-
FREE REGIONAL SHIPPING*
-

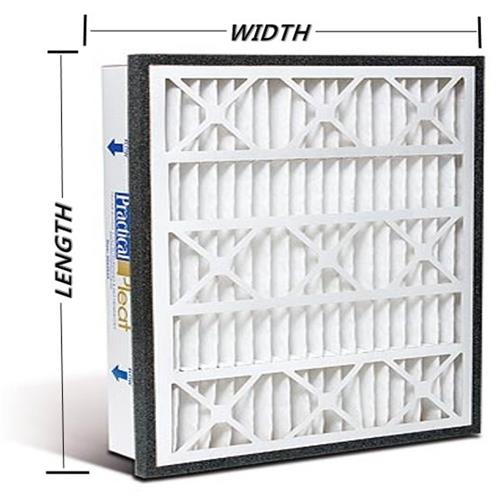

Filter Size: 14 x 30 x 5 inches
-
Filters specifications approximately ± 1/8"
-
Dust Weight Arrestance: 99%
-

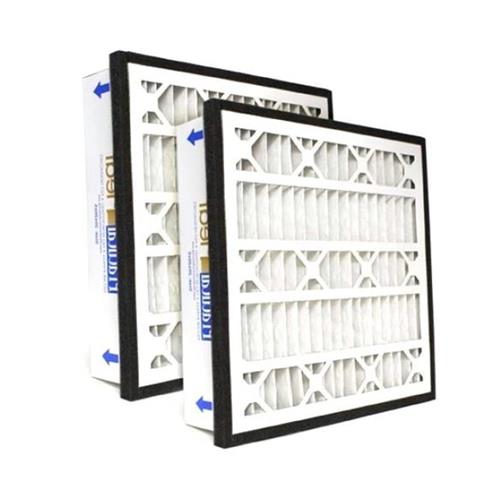

Sold Each or Case of (2) Filters
The Many Benefits of the Practical Pleat Filter:
-
MERV14 Extended Surface Pleated Filter
-
Self-sealing flexible gasket eliminates air by-pass.
-
Increased surface area provides extended lifetime.
-
Low-pressure drop reduces energy consumption.
-

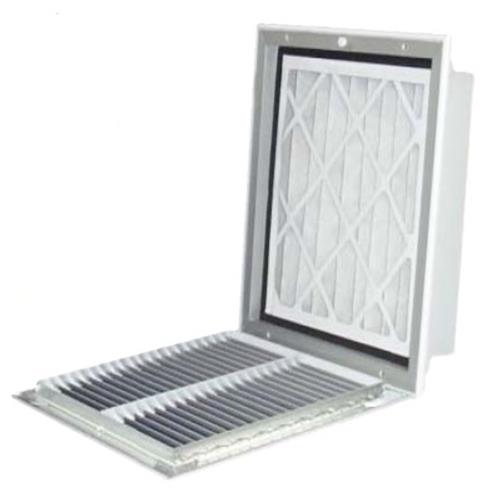

Five-inch deep pleat filter that fits into most 1 inch return air grilles.
-
No retrofitting or installing expensive "in duct housings" required.
-
Filters last up to 6 times as long as one-inch filters.
-
MERV11 efficiency , captures and removes fine particles to promote better indoor air quality (IAQ).
-
The Practical Pleat's surface area is 433% greater than a comparable one-inch filter.
-
Extended surface pleating reduces resistance to airflow by 41%.
Supersedes / Replaces: 14x30x1 14 x 30 x 1 13-1/2 x 29-1/2 x 1 13-1/2x29-1/2x1 13.5x29.5x1 13.5 x 29.5 x 1 PP0814302 PP08-14302 PP1114305 PP11-14305 PP1414305 PP14-14305 and similar pleated filters
*Freight May Be Additional Depending on Your Location , Ships FREE East of the Mississippi
NOTE: These Filters are BTO / Built-To-Order , Leadtimes may be impacted due to delays in Manufacturing and/or Supply Chain disruptions. Please Contact Us if you have any concerns or to confirm availability prior to ordering.
Additional Filters & IAQ Products Available , Contact Us for More Information
Click on any of the links below to download associated documentation.
»
Test Data - MERV14 PracticalPleat.pdf
