PracticalPleat Filters offer a simple solution for retrofitting standard 1" filters with an extended media, high efficiency option. Lasting up to 4 months , the Practical Pleat filter has a patented gasket that conforms to imperfections in the filter track, eliminating air bypass and preserving the integrity of the MERV8 Rating. This unique gasket fits into the one-inch filter slot with the excessive depth protruding in the duct system or return plenum.
Custom Size: 600 - 699 Square Inches # PP08-NS2-6
Specifications
-
FREE REGIONAL SHIPPING*
-

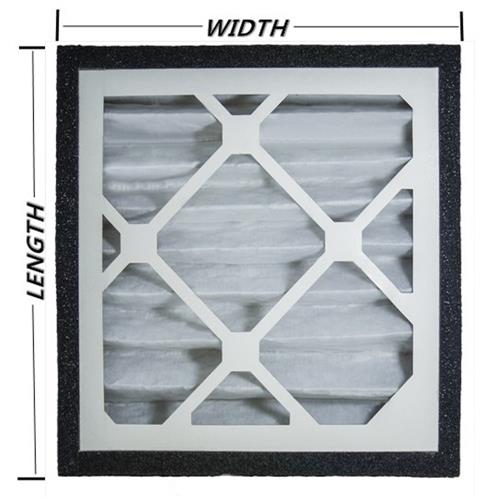

Custom Size: 600-699 Square Inches (Length x Width)
-
Minimum Custom Size: 6" x 6"
-
Maximum Custom Size: 25" x 30"
-
Custom Double Filters Available , over 25" x 30"
-
Filters specifications approximately ± 1/8"
-

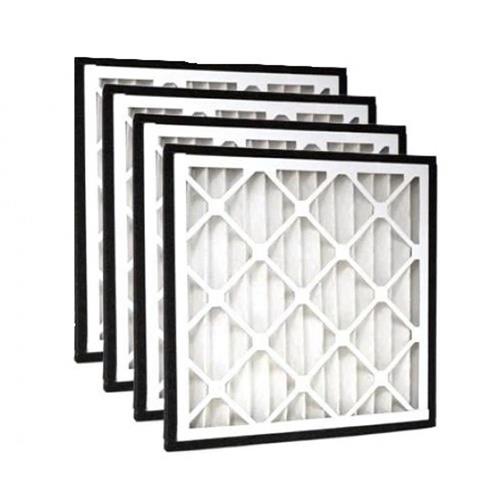

Sold in Cases of (4) or (6) Filters
The Many Benefits of the Practical Pleat Filter:
-
MERV8 Extended Surface Pleated Filter
-

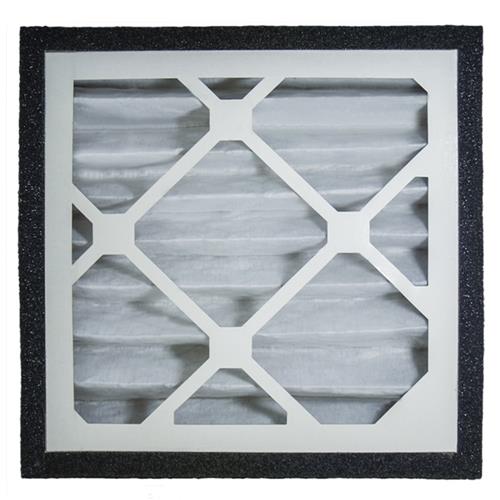

Self-sealing flexible gasket eliminates air by-pass.
-
Increased surface area provides extended lifetime.
-
Low-pressure drop reduces energy consumption.
-

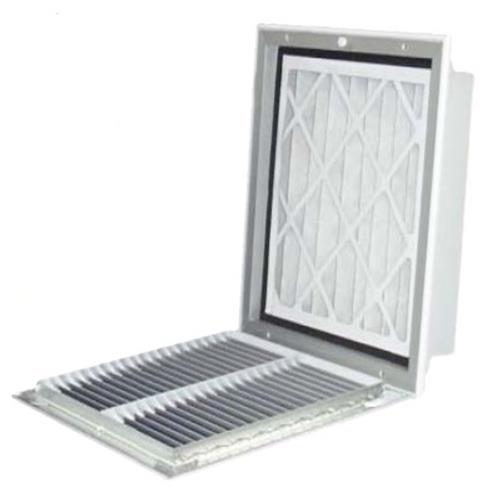

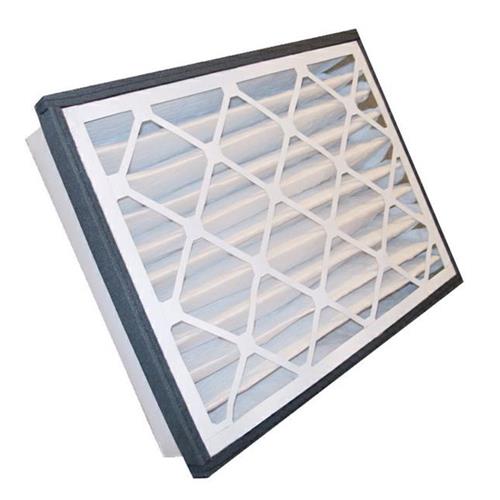

Two-inch deep pleat filter that fits into most 1 inch return air grilles.
-
No retrofitting or installing expensive "in duct housings" required.
-
Filters last up to 6 times as long as one-inch filters.
-
MERV8 efficiency , captures and removes fine particles to promote better indoor air quality (IAQ).
-
The Practical Pleat's surface area is 433% greater than a comparable one-inch filter.
-
Extended surface pleating reduces resistance to airflow by 41%.
*Freight May Be Additional Depending on Your Location , Ships FREE East of the Mississippi
NOTE: These Filters are BTO / Built-To-Order , Leadtimes may be impacted due to delays in Manufacturing and/or Supply Chain disruptions. Please Contact Us if you have any concerns or to confirm availability prior to ordering.
Additional Filters & IAQ Products Available , Contact Us for More Information
Click on any of the links below to download associated documentation.
»
Test Data - MERV8 PracticalPleat.pdf
